Install battery management electronics (SME)

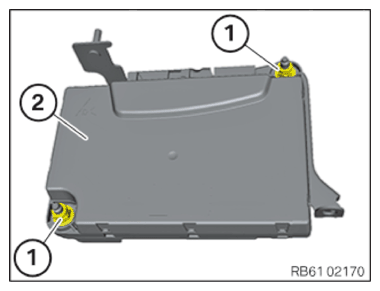

• Insert the battery management electronics (SME) (2) into the carrier plate and tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Battery management electronics to removable panel
  Nut M6 replace nut.	Tightening torque	4.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the battery management ELECTRONICS  (SME) including holder.
• Install high-voltage battery unit LID .
• Perform EOS TEST
• ENCODE/PROGRAM control unit(s).
