61 27 High-Voltage Battery Unit, Individual Components
>>
61 27 650 Set up high-voltage battery unit for replacement (After vehicle diagnosis) (high voltage battery unit removed) (530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022)
>>
Tighten radiator
Tighten radiator

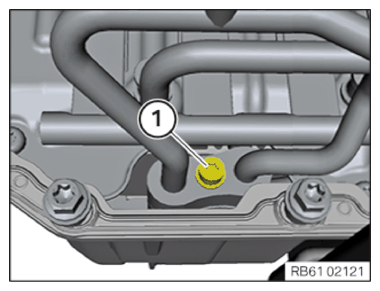

Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
Radiator connection
M6x35
Tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
Radiator connection
M6x35
Tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
