Removing the roof function center (FZD)
NOTE:
RISK OF DAMAGE Careless handling of tools and sharp-edged components. Scratch, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
RISK OF DAMAGE Electrostatic discharge. Damage to or destruction of electrical components.
- Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES for ESD protection (electrostatic discharge)
NOTE:
TECHNICAL INFORMATION
With the optional equipment SA6UA, the camera for gesture control is integrated in the roof control module. Separate exchange of this camera in the event of a fault is not possible.
With the optional equipment SA6UA, the camera for gesture control is integrated in the roof control module. Separate exchange of this camera in the event of a fault is not possible.

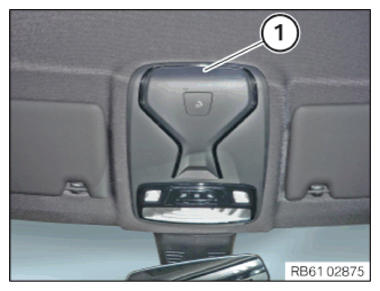

- Unclip the cover (1).

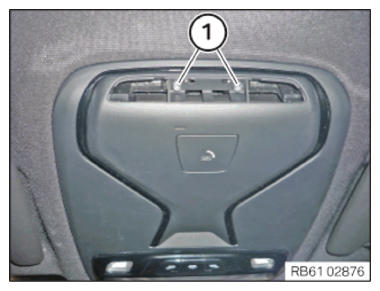

- Loosen screws (1).

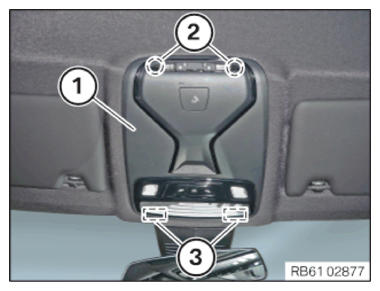

- Unclip the roof function center (FZD) (1) from the clamps (2).
- Thread the roof function center (FZD) (1) out of the guides (3).

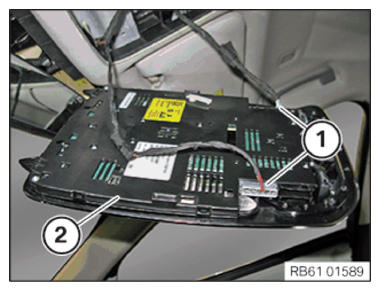

- Unlock and disconnect plug connections (1).
- Unclip the cable clip from roof function center (FZD) (2) and remove the roof function center (FZD) (2).
