61 31 Switch, Sensor
>>
61 31 062 Removing and installing/replacing button (adjustment switch) for steering wheel heating (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Installing the steering column adjustment switch
Installing the steering column adjustment switch

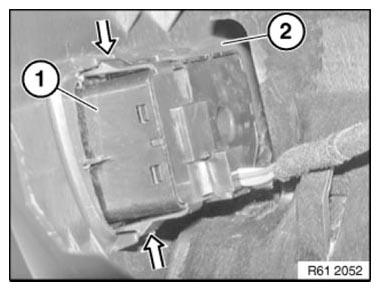

Press the steering column adjustment switch (1) in the steering column shroud (2) (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up Work
Install steering lower section column
SHROUD
.
Fit steering upper section column
SHROUD
.
