61 31 116 Replacing the rocker switch for side window operation (rear left or right) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Removing the rear power window switch
Removing the rear power window switch
Preliminary works
Remove the door handle
COVER
.
Remove rear door
TRIM PANEL
.

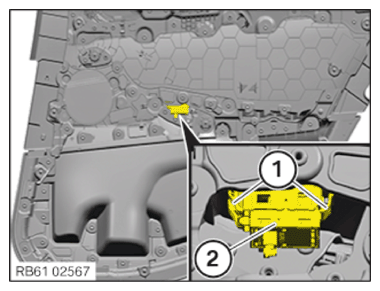

Disengage the latch mechanisms (1) of the power window switch (2).
Courtesy of BMW OF NORTH AMERICA, INC.

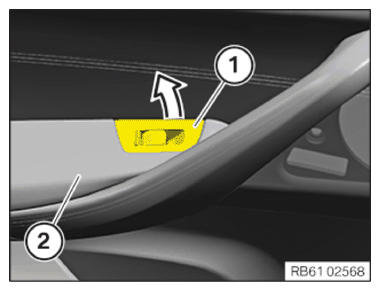

Thread the power window switch (1) in direction of arrow out of the door trim panel (2).
Courtesy of BMW OF NORTH AMERICA, INC.
