Installing roof function center (FZD)

• Connect connectors (1) and lock.
• Clip in the cable for the roof function center (FZD) (2) in the cable clip.

  Courtesy of BMW OF NORTH AMERICA, INC.

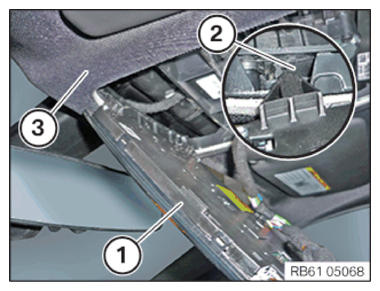

• Insert the roof function center (FZD) (1) as shown at a steep angle in the two guides (2) on the headlining (3).
• Make sure the headlining is not deformed during this operation.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip the roof function center (FZD) (1) upwards into the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

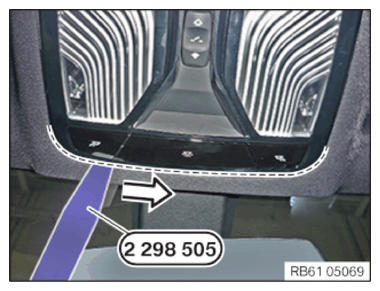

• Slide the special tool 2 298 505  in the direction of arrow between the FZD frame and the headlining along the dotted line to adjust the headlining correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

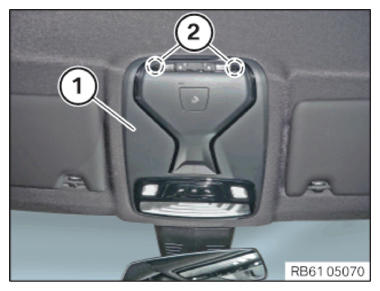

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Roof function center (FZD)
  	Tightening torque	1.2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• ENCODE/PROGRAM control unit(s)
