General Electrical System - Repair (G30) (3 Of 3)
>>
61 31 Switch, Sensor
>>
61 31 584 Removing and installing/replacing the switch for the automatic operation of tailgate (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install the tailgate lift switch
Install the tailgate lift switch
Prerequisite
Tailgate is open.

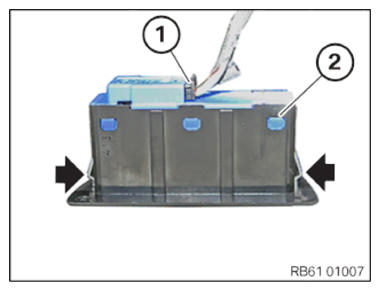

Connect the connector (1) with the switch (2).
Courtesy of BMW OF NORTH AMERICA, INC.

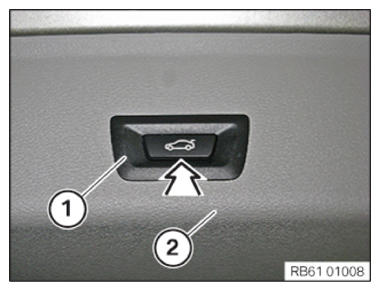

Install the switch for the tailgate lift (1) in the tailgate trim panel (2) in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
