Install control electronics for Near Field Communication

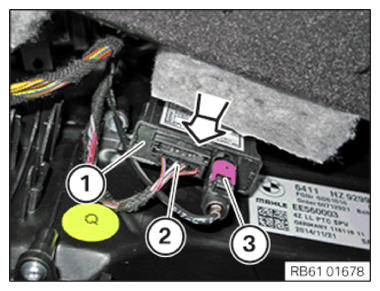

• Install control electronics (1) in the direction of the arrow.
• Connect connectors (2) and lock.
• Connect connectors (3) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the right footwell TRIM PANEL .
