Installing the rain-light-solar-condensation sensor

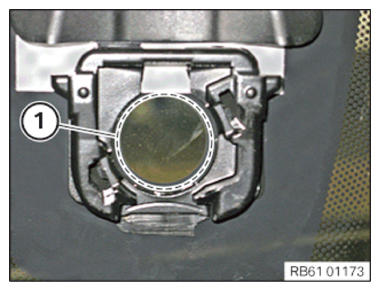

Check windscreen in area (1) for impurities.
If necessary, clean windscreen in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

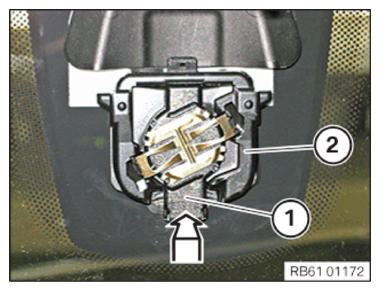

Feed in the rain-light-solar-condensation sensor (1) in direction of arrow into the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

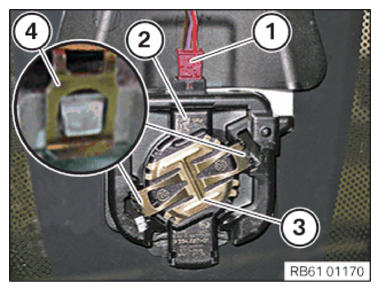

Centrally press on the rain-light-solar-condensation sensor (2) onto the retaining spring (3).
Successively press down the retaining springs (4) on each side to lock it.
Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Normally, any air bubbles disappear within 30min.

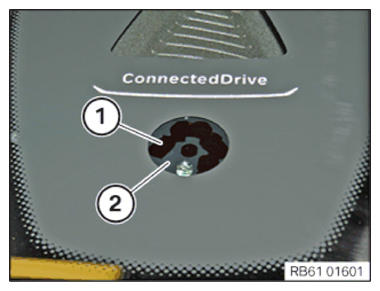

Visible shades (1) and (2) are not air pockets but rather the optical element of the sensor. The shades do not represent any functional limitation.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work
