Replacing the nozzle chain

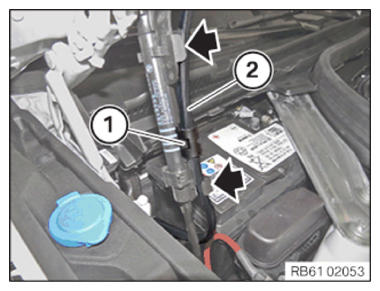

- Unlock the holder (1).
- Feed out jet chain (2) from guides.

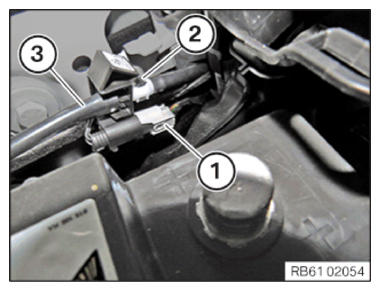

- Unlock and disconnect connector (1).
- Unlock lock (2) and disconnect.
- Feed out nozzle chain (2) with access line.
- Feed in nozzle chain (3) with access line.
- Connect jet chain (3) and lock.
- Connect connectors (1) and lock.
- Feed in jet chain (2) into guides.
- Lock holder (1).
