Installing the ACC sensor

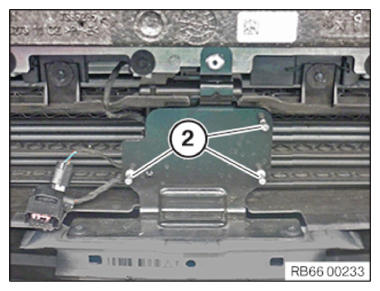

• Check the ball pin (2) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the latch mechanisms (2) of the radome (1) on the ACC sensor (3) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the ACC sensor (2) with the radome.

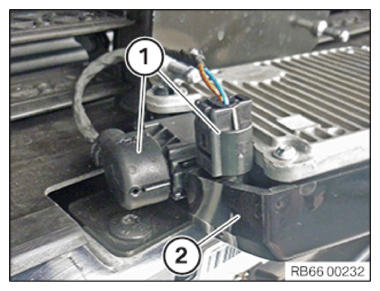

• Connect and lock the connector (1) on the ACC sensor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Engage the ACC sensor (1) with the radome at the ball pin (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Adjust the ACC SENSOR .
• Install front BUMPER PANEL .
• Install front ORNAMENTAL GRILLE .
• Install (partially removed) front section of front wheel ARCH COVER
