Instructions for ACC adjusting device (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

Courtesy of BMW OF NORTH AMERICA, INC.

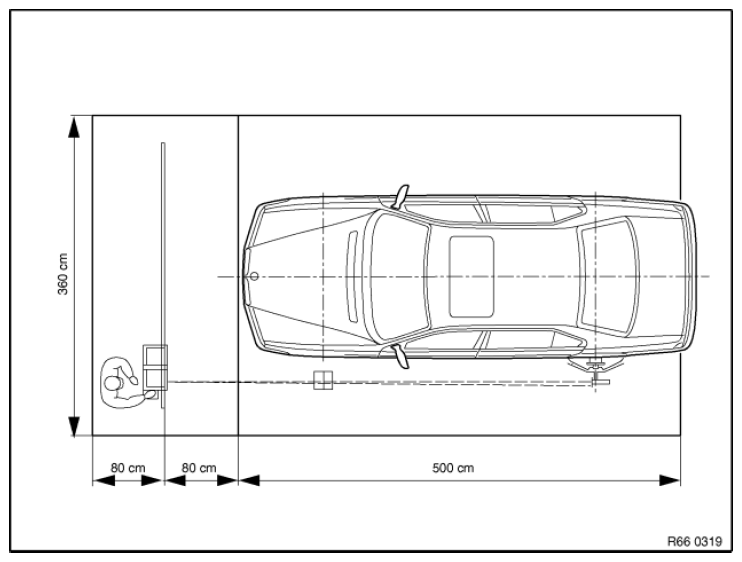

Requirements for the measurement area for ACC adjusting device

Dimensions:

1. Area behind the mirror of at least 80 cm that cane be entered
2. Distance between mirror and vehicle 80 cm +/- 5 cm

   (Distance between mirror and ACC sensor 100 cm +/- 5 cm)

3. Total area of work area 360 cm x 660 cm

Maximum irregularity of floor surface:

• Floor surface - adjusting device ≤ 1 mm
• Floor surface - vehicle ≤ 10 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

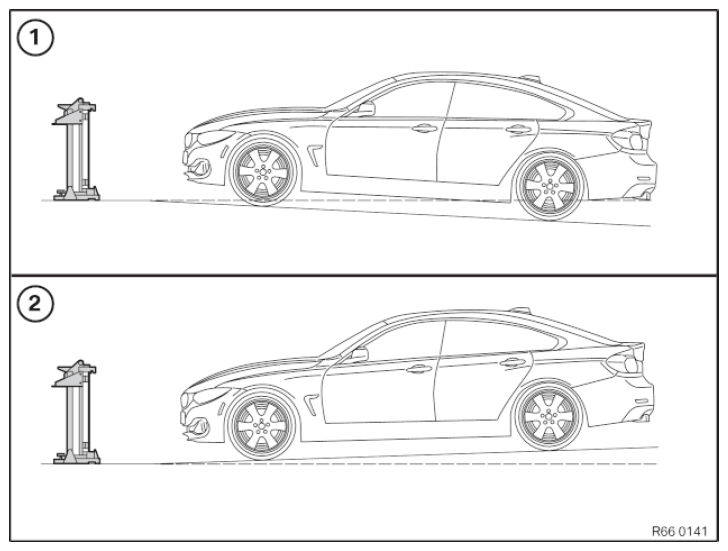

Maximum angle of inclination of floor surface - vehicle:

• Downward incline of floor surface maximum 3°, see graphic above (1)
• Upward incline of floor surface maximum 1°, see graphic above (2)

Detailed setup and operating instructions are enclosed with every ACC adjusting device.
