Removing the front radar sensor long range (FRSF) with the holder

Preliminary works

• Remove front ORNAMENTAL GRILLE .
• Partially remove the front section of the front wheel ARCH COVER
• Remove front BUMPER PANEL .

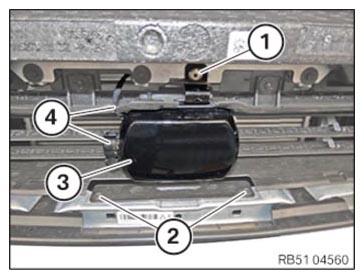

• Drill out rivet (1).
• Loosen screws (2).
• Remove the front radar sensor long range (FRSF) (3) with the holder towards the front.
• Unlock and disconnect plug connections (4).
