Remove right oxygen control sensor
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Unlock plug connection and disconnect.
- Detach oxygen sensor cable from retaining clips.

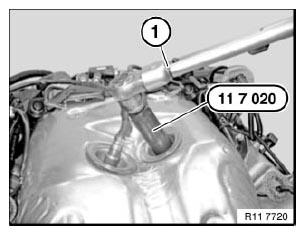

- Detach the control sensor with the special tool 0 491 074 (11 7 020) .
