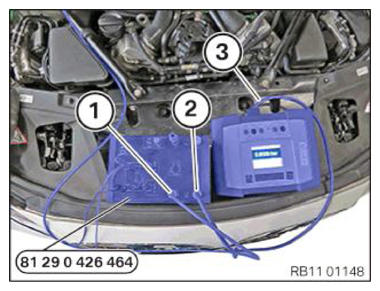

Connect the diagnosis auxiliary device to the IMIB

• Insert the blue excess pressure line to the diagnosis auxiliary device 0 426 464  at the connector (1).
• Connect the Integrated Measurement Interface Box (3) with a hose to the connector (2) on the diagnosis auxiliary device 0 426 464  .
