11 65 Charger With Control
>>
11 65 185 Removing and installing/replacing lower heat shield (M550i xDrive, 2018-2019)
>>

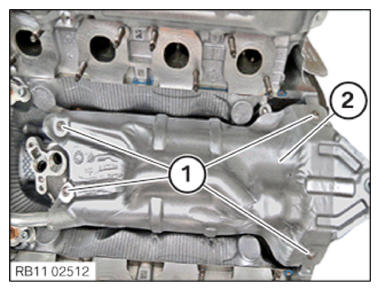

Install lower heat shield
Install lower heat shield
Install heat shield (2).
Secure screws (1).
TIGHTENING TORQUES SPECIFICATION
Standard screw connection M6
M6
Tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
