Engine - Turbocharger/Vacuum Pump/EGR/O2 Sensors - Repair (G30)
>>
11 66 Vacuum Pump
>>
11 66 0001 Removing and installing/replacing vacuum pump (M550i xDrive, 2018-2019)
>>

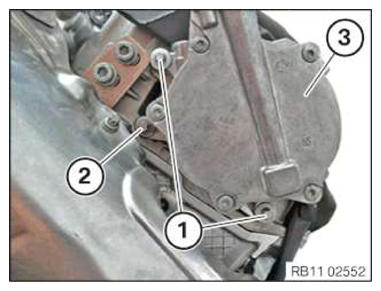

Remove vacuum pump
Remove vacuum pump
Loosen screws (1).
Loosen screw (2).
Detach the vacuum pump (3) to the rear.
