Removing the oxygen sensor monitor
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING COMPLETE EXHAUST SYSTEM .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING CATALYTIC CONVERTER .
Oxygen sensor monitor
NOTE:

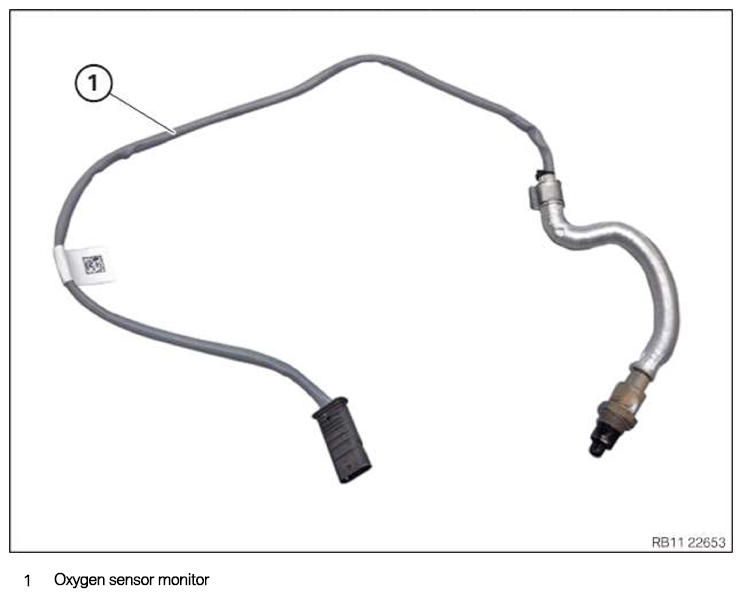

The cable of the oxygen sensor monitor is gray. The installation location of the oxygen sensor monitor is behind the catalytic converter.
- Release the oxygen sensor monitor (1) with the special tool 0 491 074 (11 7 020) .
NOTE:
Remove the oxygen sensor monitor with the help of a support person.
- Thread out the oxygen sensor monitor (1) and remove it.
