Replacing radiator of the high-temperature coolant circuit

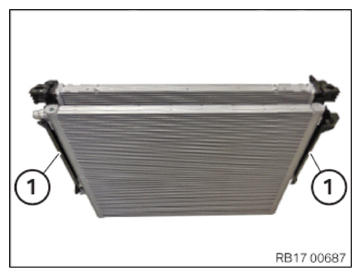

Unlock and loosen the covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

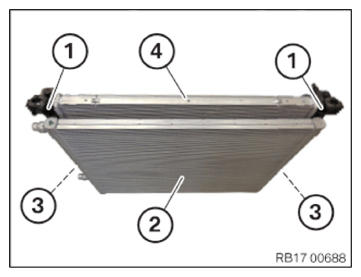

Unlock the locks (1).
Guide radiator of low-temperature coolant circuit (2) out of the guides (3) of the radiator of the high-temperature coolant circuit (4) and remove.
Replace high-temperature radiator (4).
Parts : Radiator of high-temperature coolant circuit (4)

Courtesy of BMW OF NORTH AMERICA, INC.
Guide radiator of low-temperature coolant circuit (2) into the guides (3) of the radiator of the high-temperature coolant circuit (4) and install.
The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
