Replacing coolant radiator

Unlock the detents (1).
Feed out and remove the air conditioning condenser from the guides (2) toward the top.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and remove the coolant temperature sensor (2) on the previous radiator at the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

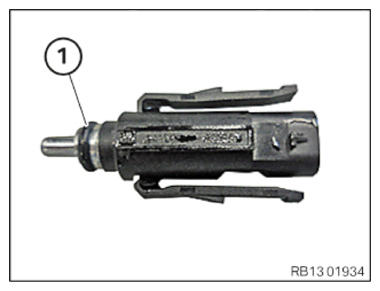

Check sealing ring (1) for damage and, if necessary, replace it.

Courtesy of BMW OF NORTH AMERICA, INC.
Install and lock the coolant temperature sensor (2) in the new radiator at the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.
- Install air conditioning condenser
Position the air conditioning condenser.
Feed the air conditioning condenser upwards into the guides (2).
Lock the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.
