Cooling System - Repair (G30) (2 Of 2)
>>
17 11 Engine Oil Cooler With Attachment
>>
17 11 016 Removing and installing/replacing the right auxiliary radiator (M550i xDrive, 2018-2019)
>>
Replacing external radiator
Replacing external radiator

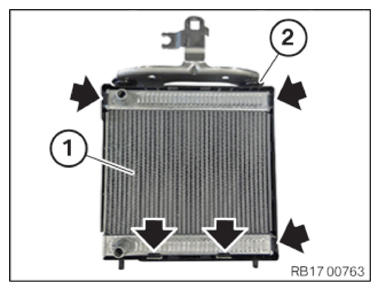

Unlock the locks and remove the holder (2) from the external radiator (1).
Replace the external radiator (1).
Parts:
Evacuated coolant radiator
Install the external radiator (1) into the holder (2) and secure with locks.
