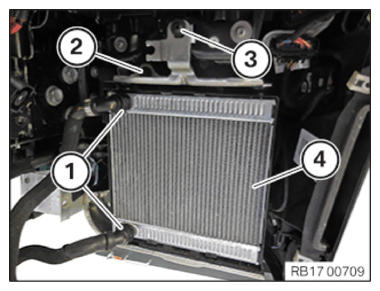

Install the external radiator on the right
- Install right external radiator (4) together with the holder.
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
External radiator to air duct Tightening torque 3 Nm - Tighten down screw (3).TIGHTENING TORQUES SPECIFICATION
External radiator to lock support M6x20 Tightening torque 12 Nm - Connect the coolant hoses (1).
The coolant hoses must audibly snap into place.
Follow-up work
- Refer to INSTALL THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to FILL THE COOLING SYSTEM WITH THE VACUUM FILLING UNIT .
- Refer to VENT THE HIGH-TEMPERATURE COOLANT SYSTEM .
