Install the external radiator on the right

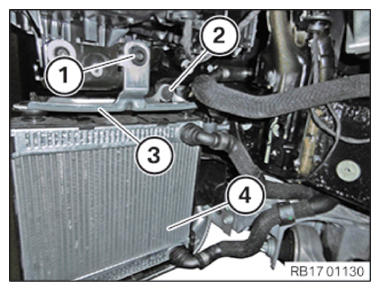

• Position the radiator (4) with the holder (3) in the rubber mounts diagonally downwards towards the front bottom.
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Holder for upper external radiator
  Screw	Tightening torque	11.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Holder for side external radiator
  Screw	Tightening torque	3.5 Nm

  NOTE: Description is for left component only. Procedure on the right side is identical.

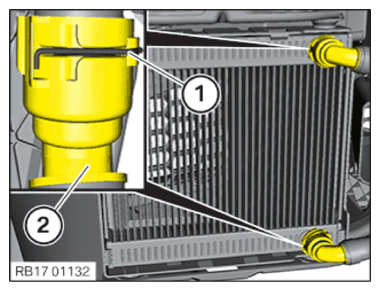

• Slide the coolant lines (2) forwards.

  The retaining clips (1) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • If installed: Installing the right cross-member

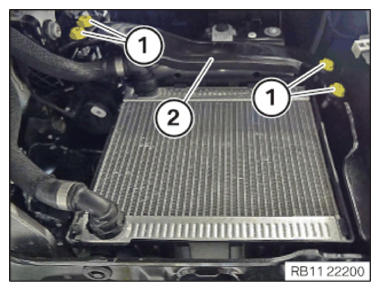

• Position the right cross-member (2).
• Tighten down screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT RIGHT WHEEL .
• Refer to FILL AND VENT THE HIGH-TEMPERATURE COOLANT CIRCUIT .
