Replacing the left external radiator and retrofitting or remounting the stone chip guard

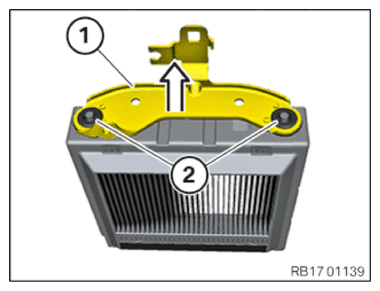

- Remove the holder (1) from the frame with the rubber mounts (2) in arrow direction upwards.
- Disengage the frame (1) at the detents in the area of the arrows.
- Remove coolant radiator from the frame (1).
- Retrofit the stone chip guard (1).
Parts: Stone chip guard
- Retrofit the frame with the stone chip guard (1) only when replacing the coolant radiator.
- Install the coolant radiator in the frames with stone chip guard (1).
- Ensure that the coolant radiator snaps-in audibly at the detents of the frame with stone chip guard (1) In the area of the arrows.

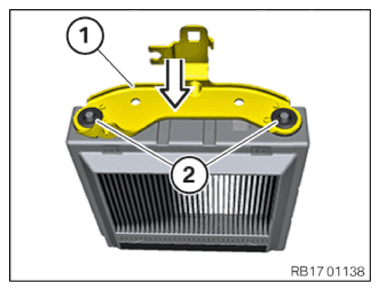

- Mount holder (1) with the rubber mounts (2) toward the bottom.
