Removing the coolant ventilation line of the coolant radiator
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
- Refer to REMOVING RIGHT INTAKE FILTER HOUSING WITH RIGHT FRONT-END STRUT .
- Refer to REMOVE FRONT CROSS CONNECTION .
- Refer to REMOVE THE REAR TOP CROSS CONNECTION .
- Refer to REMOVE FAN COWL .
- Refer to PARTIALLY RELEASE THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVE DRIVE BELT .
- Refer to REMOVING THE FRONT RIGHT LOWER WHEEL ARCH COVER .
- Refer to REMOVE THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE FRONT THRUST FIELD .
- Refer to DRAINING COOLANT .
- Refer to PARTIALLY RELEASING THE RIGHT CHARGE AIR LINE .
- Refer to RELEASING LEFT CHARGE AIR LINE PARTIALLY .
- Refer to PARTIALLY REMOVE THE CHARGE AIR COOLER .
- Refer to REMOVE THE CLEAN AIR PIPE OF CYLINDER BANK 2 .

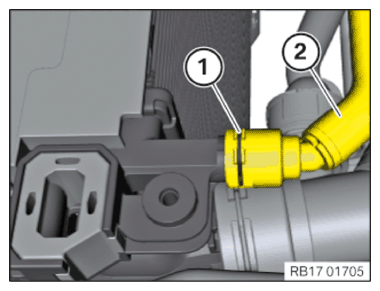

- Unlock the coolant ventilation line (2) on the clutch (1) and disconnect it.

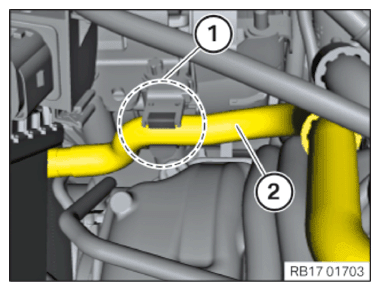

- Unclip the coolant ventilation line (2) from the holder (1).

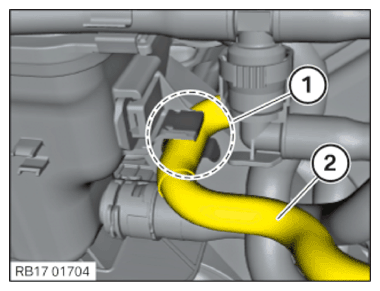

- Unclip the coolant ventilation line (2) from the holder (1).

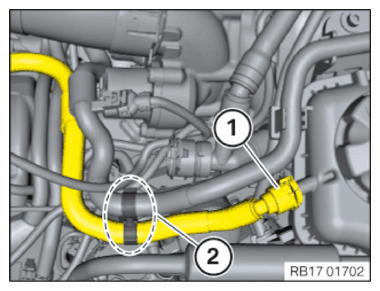

- Unlock the coolant ventilation line on the clutch (1) and disconnect it.
- Release coolant ventilation line in the area (2) from the holders.
- Feed out coolant ventilation line and remove.
