Removing the coolant line from coolant radiator to coolant pump
Preliminary work
- Refer to 17 00 COOLING, TEST
Prerequisite
Coolant has been drained.
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
Notes on work at the cooling system form the basis of these repair instructions and must be complied with at all times.
For additional information see: 17 00... INSTRUCTIONS FOR REPAIR WORK ON COOLING SYSTEM
Notes on work at the cooling system form the basis of these repair instructions and must be complied with at all times.
For additional information see: 17 00... INSTRUCTIONS FOR REPAIR WORK ON COOLING SYSTEM

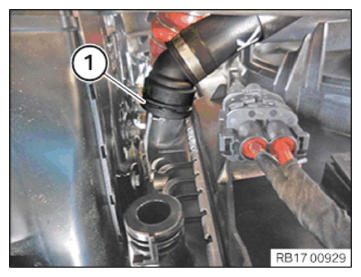

- Unlock the coolant line (1) and detach it.
- Catch and dispose of escaping coolant.
- Feed out coolant line (1) and remove.
