Remove the rear view camera (RFK)

Preliminary works

• Remove the tailgate LIFT SWITCH .
• Remove tailgate TRIM PANEL .
• Remove tailgate PUSH BUTTON .

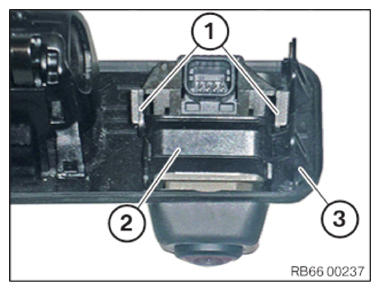

• Loosen the latch mechanisms (1) at the holder of the rear view camera (RFK) (2) and remove the holder.
• Disassemble and remove the rear view camera (RFK) (2) from the button for the tailgate (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
