Removing transmission oil cooler
Preliminary work
- Refer to REMOVE RESONATOR .
- Refer to REMOVE THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVE THE UNDERBODY PLANKING OF THE TRANSMISSION ON THE SIDE
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to DRAIN THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Unlock and loosen coolant line (1).
- Catch and dispose of escaping coolant.
- Unlock and loosen coolant line (2).
- Catch and dispose of escaping coolant.

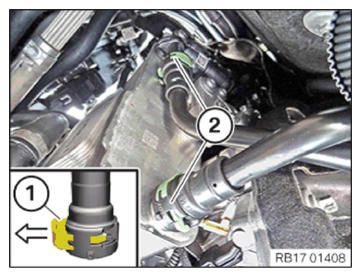

- Unlock the locks (1) on the transmission oil lines (2) in the arrow direction.
- Disconnect the transmission oil lines (2).
- Collect and dispose of emerging fluids.
- Loosen clamp (1).
- Loosen screws (2).
- Loosen screw (3).
- Release the screw (2).
- Guide out and remove the transmission oil cooler (1).
