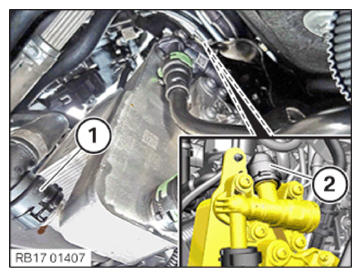

Installing the transmission oil cooler

• Feed in and install the transmission oil cooler (1).

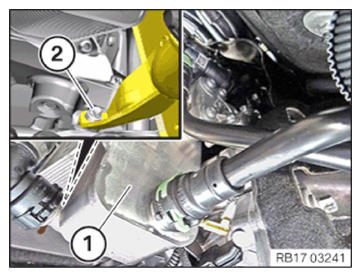

• Tighten screw (2) by hand.

  Courtesy of BMW OF NORTH AMERICA, INC.

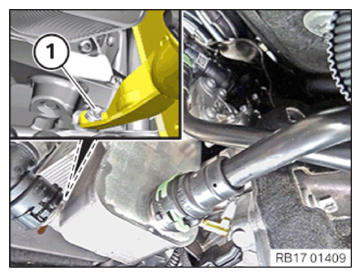

• Tighten screw (1) by hand.
• Tighten screw (2) by hand.

  Courtesy of BMW OF NORTH AMERICA, INC.

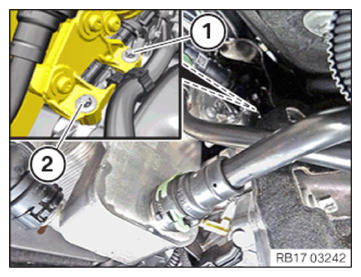

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Transmission oil cooler to crankcase
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

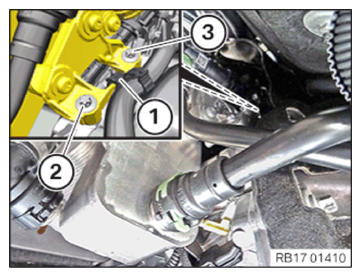

• Tighten the screws (3).
  TIGHTENING TORQUES SPECIFICATION



  Transmission oil cooler to crankcase
  M6	Tightening torque	8 Nm

• Tighten the screws (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Transmission oil cooler to crankcase
  M6	Tightening torque	8 Nm

• Secure clamps (1).
• Connect the transmission oil lines (2).

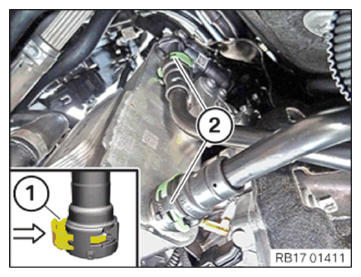

• Press the locking mechanism (1) in the arrow direction and lock the transmission oil lines (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the coolant line (2).

  Coolant line (2) must engage audibly.

• Connect and lock the coolant line (1).

  Coolant line (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECT THE COOLANT LINE OF HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALL RESONATOR .
• Refer to FILL THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT
• Refer to VENT THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to CHECK THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to INSTALL REAR UNDERBODY PROTECTION .
• Refer to INSTALL THE UNDERBODY PLANKING OF THE TRANSMISSION ON THE SIDE .
• Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
