Removing the thermostat from the transmission oil lines
NOTE:
DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
Further information is available.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
Observe the additional information for unlocking and disconnecting various plug connections in electrical and hybrid vehicles!
Observe the additional information for unlocking and disconnecting various plug connections in electrical and hybrid vehicles!

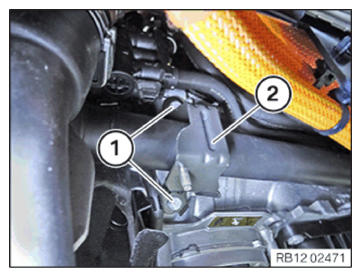

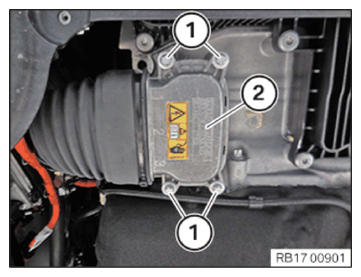

- Loosen screws (1).
- Feed the high-voltage connector (2) out and set it aside.

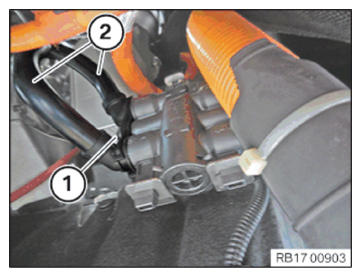

- Version A:
Loosen screw (1).
Guide out and remove holder (2).

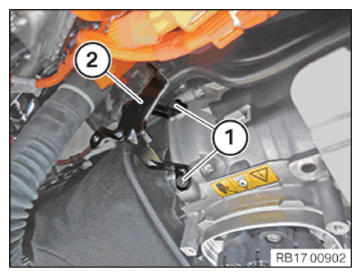

- Version B:
Release nut (1).
Guide out and remove holder (2).

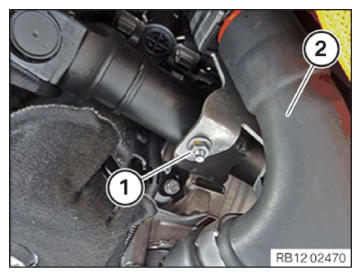

- Version A:
Loosen screws (1).
Guide out and remove holder (2).

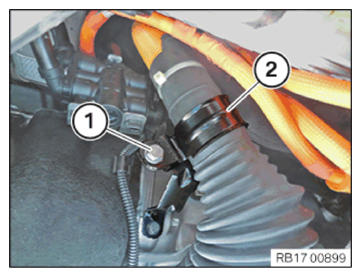

- Version B:
Loosen screws (1).
Guide out and remove holder (2).

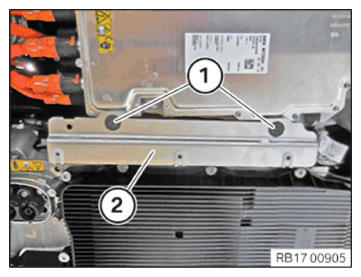

- Loosen screws (1).
- Feed out and remove the heat shield (2).

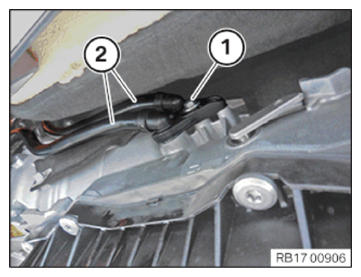

- Loosen screw (1).
- Feed out transmission oil lines (2) and put to one side.
- Catch and dispose of escaping transmission oil.

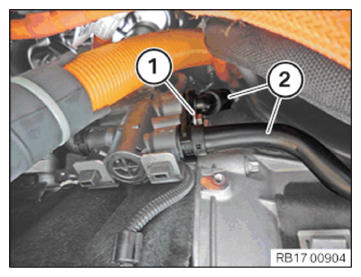

- Loosen screw (1).
- Feed out transmission oil lines (2) and put to one side.
- Catch and dispose of escaping transmission oil.
- Loosen screw (1).
- Feed out transmission oil lines (2) and put to one side.
- Catch and dispose of escaping transmission oil.

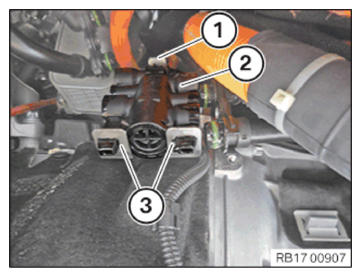

- Unlock lock (1).
- Feed the thermostat (2) out of the guides (3) and remove it.
