Removing the feed line for the transmission oil cooler
Preliminary work
- Refer to REMOVE THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to RELEASING THE FRONT PROP SHAFT ON THE FRONT AXLE TRANSMISSION .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

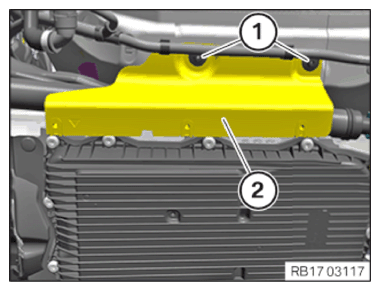

- Loosen the nuts (1).
- Feed out the retaining plate (2) and set it aside.

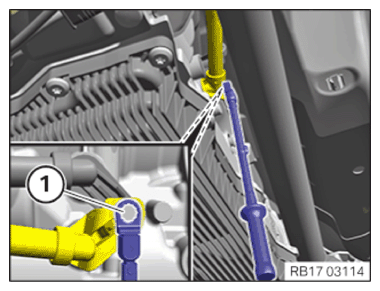

- Loosen screw (1).

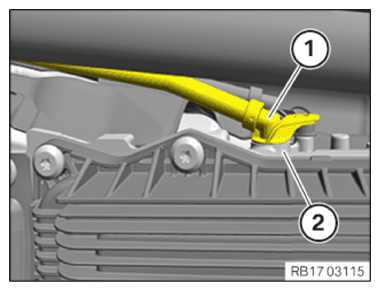

- Feed out the feed line (1) for the transmission oil cooler on the automatic transmission (2).
- Catch and dispose of escaping transmission oil.

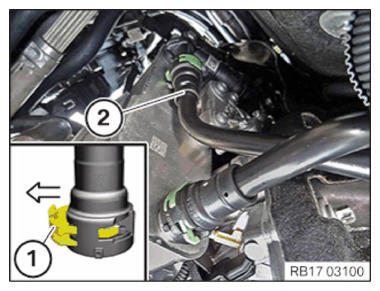

- Unlock the locks (1) in arrow direction.
- Detach, feed out and remove the feed line (2) from the transmission oil cooler.
- Collect and dispose of emerging fluids.
