Installing the feed line for the transmission oil cooler

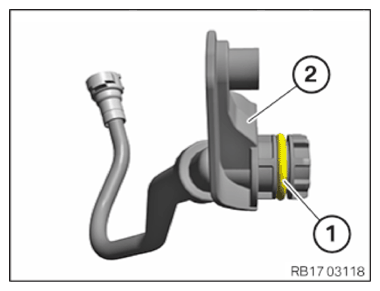

• Replace the sealing ring (1) of the feed line (2).

  Parts  : Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the feed line (2) to the transmission oil cooler.

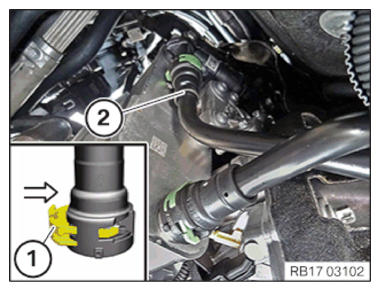

• Press the lock (1) in arrow direction and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the feed line (1) from the transmission oil cooler to the automatic transmission (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Transmission oil line to transmission
  M6x25 Replace the sealing ring.	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
• Insert and install the retaining plate (2).
• Tighten the nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Retaining plates for vehicle underbody cover
  Sheet metal nut/plastic nut Replace nuts.	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to SECURE THE JUNCTURE SHAFT IN FRONT ON THE FRONT AXLE DIFFERENTIAL .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to INSTALL REAR UNDERBODY PROTECTION .
• Refer to INSTALL THE THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
