Prepare the coolant pump and the coolant pump housing
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.

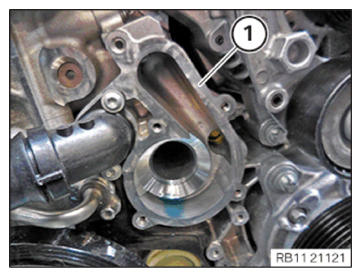

- Clean sealing surfaces (1) with special tool 0 495 102 (11 4 470) .
Check

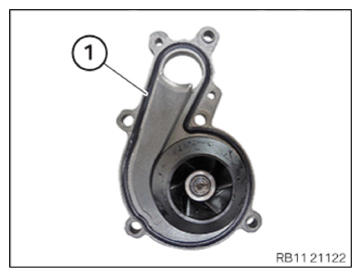

- Check the sealing bead (1) for damage.
- Check the protrusion of the sealing bead (1).
Result
» The sealing bead (1) is not protruding or the sealing bead (1) is damaged.
Measure
- Replace the sealing bead (1).
- Have the special tool 2 469 803 ready.
NOTE:
TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE)
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE)
- Position the sealing compound (1) as shown on the special tool 2 469 803
.
Parts: Sealing compound
SEALING COMPOUND DESCRIPTION
| Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature |
50 ml, Cartridge | 83190404517 |
NOTE:
TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.
- Apply the sealing compound with a height of approximately 2 mm to 2.5 mm.

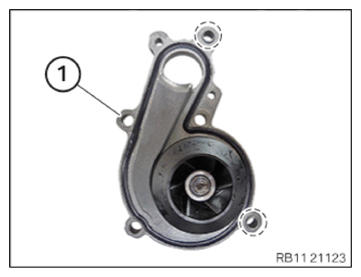

- Check guide sleeve in the marked coolant pump (1) for correct fit.
