For replacement: Prepare the coolant pump

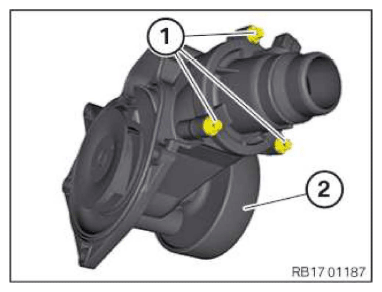

Loosen screws (1).
Remove the thermostat.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

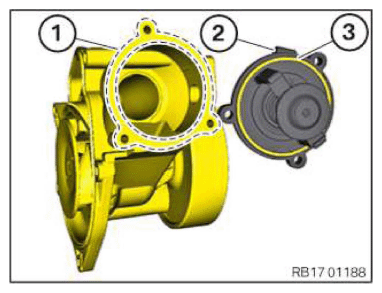

Clean sealing surface (1).
Remove the seal (3) from the thermostat (2).
Replace gasket (3).
Parts : Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
Position thermostat housing.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Thermostat housing on the coolant pump
M6x25 screw	tightening torque	8 Nm

G14256091

Courtesy of BMW OF NORTH AMERICA, INC.
