Installing the electric coolant pump for the charge air cooler and the air conditioning condenser

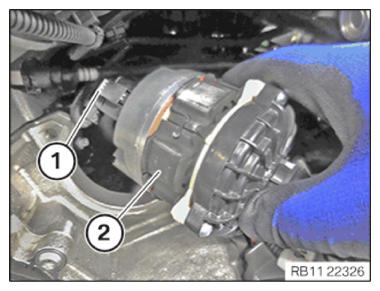

• Position the electric coolant pump (2).
• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the retainer (2).
• Make sure the retainer (2) is positioned correctly.
  NOTE: RISK OF DAMAGE
  Improper screw length can cause component damage.
  The use of screws of improper length can lead to component damage.

  • Note the correct screw length.
  • Install screws that correspond to the original length.

  Courtesy of BMW OF NORTH AMERICA, INC.

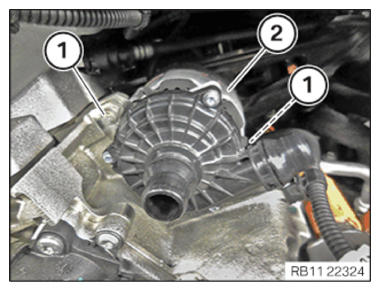

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Electric coolant pump on component earner
  M6 Replace screws.	tightening torque	8 Nm

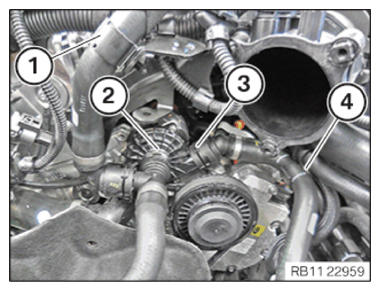

• Connect and lock coolant line (2) and (3).
• Make sure that you can hear coolant lines (2) and (3) engage.
• Secure the clamp (1).
• Secure the coolant line (3) to the holder (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE THROTTLE BODY .
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING RESONATOR .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
• Refer to FILLING AND VENT THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
