Installing the auxiliary coolant pump

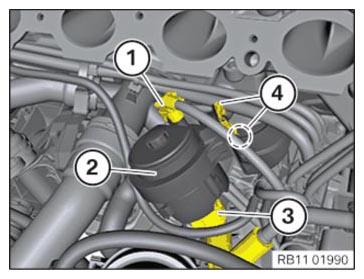

- Position auxiliary coolant pump (2) on holder.
- Lock coolant hose (1) and connect to the auxiliary coolant pump (2).
- Lock coolant hose (3) and connect to the auxiliary coolant pump (2).
- Secure auxiliary coolant pump (2) with the clamps (4).

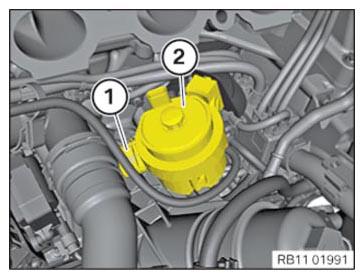

- Connect connector (1).
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to FASTENING CHARGE AIR LINE TO THE THROTTLE BODY .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING FRONT STIFFENING PLATE .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
