Install heat management module

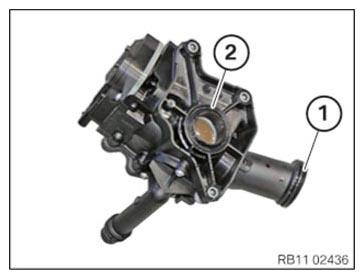

- Replace the O-Ring (1) and gasket (2).
Parts: O-ring and gasket

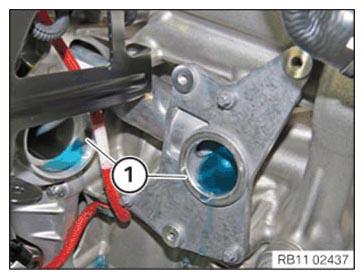

- Clean sealing surface (1).

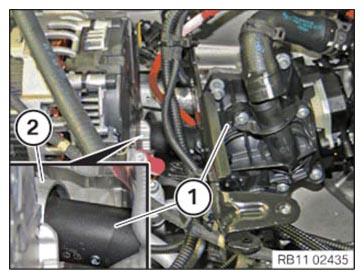

- Feed out the heat management module (1) to the outside rear out of the component carrier (2).

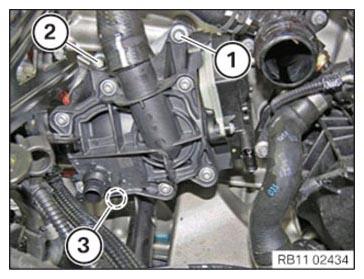

- Tighten the screws (1) to (3).
TIGHTENING TORQUES SPECIFICATION
| Heat management module to engine block | ||
| Captive screws | Tightening torque | 8 Nm |

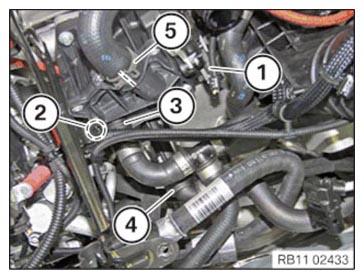

- Insert coolant hose onto the heat management module and fasten with the clamp (5).
See that the marking lines up.
NOTE:
Make sure that the connections are locked correctly. The locks must engage audibly.
- Connect and lock the coolant hoses (3) and (4).
- Clip in positive battery cable in area (2).
- Connect connector (1).
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to FASTENING CHARGE AIR LINE TO THE THROTTLE BODY .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING FRONT STIFFENING PLATE .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
