Replacing left low-temperature coolant pump

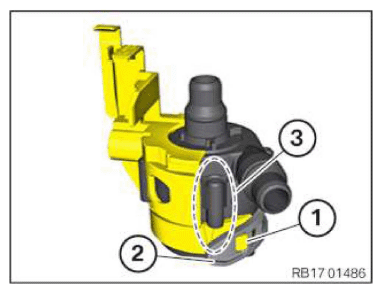

Release locking tab (2) on snap-in lug (1).
Remove coolant pump for low temperature from holder.
Position coolant pump for low temperature in holder.
The arrow on the bracket in area (3) must be flush with the screw connection of the coolant pump.
Fasten locking tab (2) at snap-in lug (1).

Courtesy of BMW OF NORTH AMERICA, INC.
