Install the oil nozzle in the crankcase

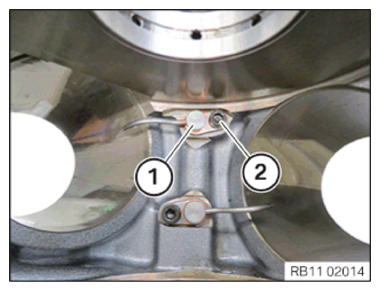

- Replace the O-ring for the oil nozzle (1).
Parts
: O-ring
- Lightly grease and insert the O-ring for the oil nozzle (1).
- Position the oil nozzle (1) with the screw (2).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Oil nozzle to crankcase |
| M12x1 |
Tightening torque |
10 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
