Engine - Oil Filter & Filling/Oil Cooling/Coolant Pump - Repair (G30)
>>
11 42 Oil Filter And Pipes
>>
11 42 350 Removing and installing/replacing both oil feed lines (M550i xDrive, 2020-2022)
>>
Removing the oil feed line at the exhaust turbocharger for cylinders 5 to 8
Removing the oil feed line at the exhaust turbocharger for cylinders 5 to 8

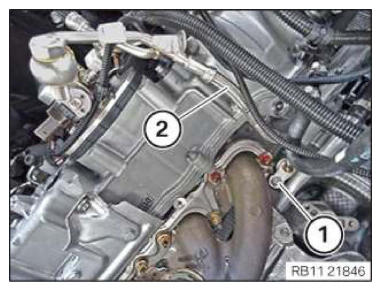

Loosen screw (1).
Loosen the left oil feed line (2) from the crankcase.
Courtesy of BMW OF NORTH AMERICA, INC.
