Engine - Oil Filter & Filling/Oil Cooling/Coolant Pump - Repair (G30)
>>
11 43 Oil Filling, Measuring Stick
>>
11 43 000 Removing and installing/sealing the oil dipstick guide tube (M550i xDrive, 2018-2019)
>>
Removing the oil dipstick
Removing the oil dipstick

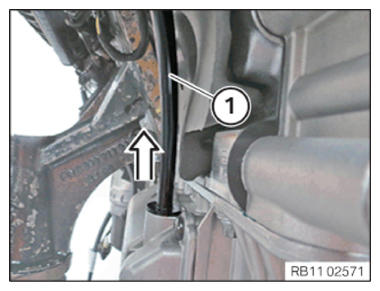

Remove the oil dipstick (1) in the direction of the arrow.
Replace O-ring.
Parts
: O-ring
