11 44 000 Removing and installing, sealing replacing oil coolant heat exchanger (M550i xDrive, 2018-2019)
>>
Releasing the coolant line on the oil coolant heat exchanger
Releasing the coolant line on the oil coolant heat exchanger

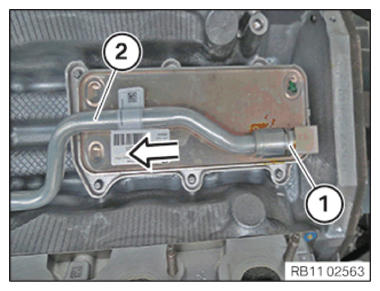

Loosen the retaining clip (1) on the coolant line (2).
Detach the coolant line (2) from the oil coolant heat exchanger in the direction of the arrow.
