Remove exhaust system

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

NOTE: TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.

Preliminary work

Refer to REMOVE THE CONNECTING SUPPORT FROM THE TUNNEL .

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

Version A:

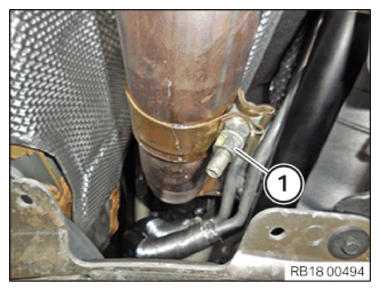

Loosen the clamp (1) on the left.

Courtesy of BMW OF NORTH AMERICA, INC.
Version A:

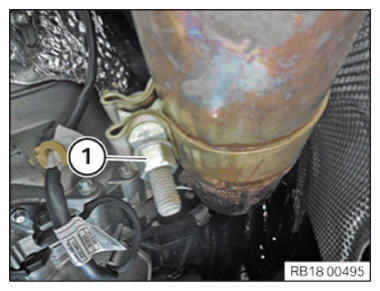

Loosen the clamp (1) on the right.

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:

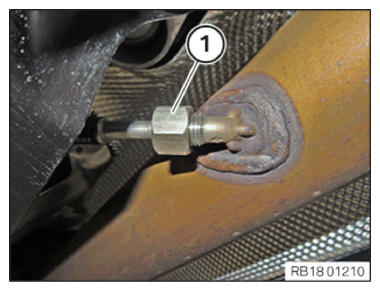

Loosen union nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:

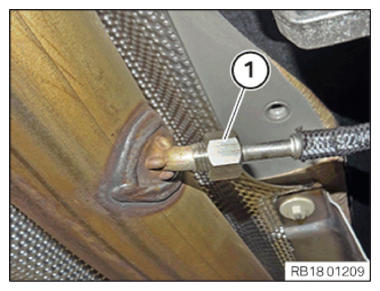

Loosen union nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:

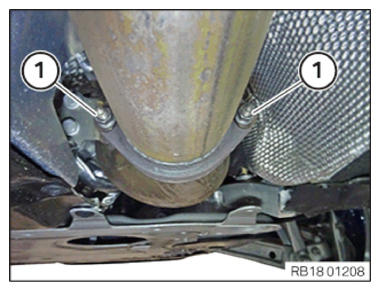

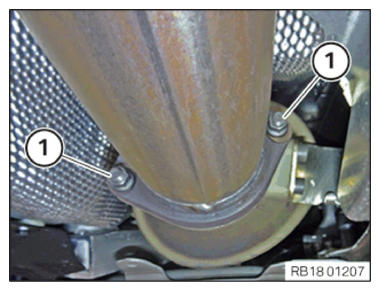

Release nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:
Release nuts (1).
Guide out and remove the exhaust system with the help of three persons.
Remove the exhaust system towards the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

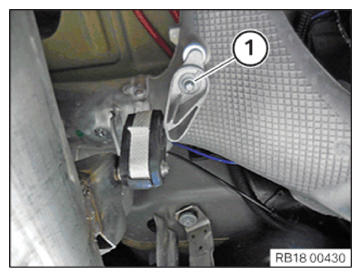

Loosen the screw (1) the left of the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

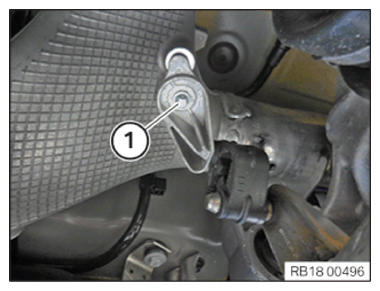

Loosen the screw (1) the right of the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

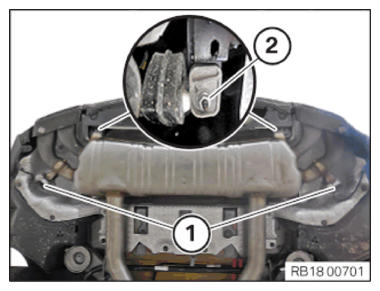

Unlock and detach the connector (1) on the left and right.
Loosen nuts (2).
Guide out and remove the exhaust system with the help of three persons.

Courtesy of BMW OF NORTH AMERICA, INC.
