Replacing the rear silencer

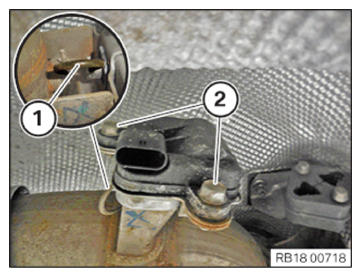

Detach retaining bracket (1).
Release the screws (2).
Remove controller drive for exhaust flap of the previous rear silencer.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Exhaust covers must be replaceed after removal.
The correct stop on the exhaust system can not be guaranteed after removal.

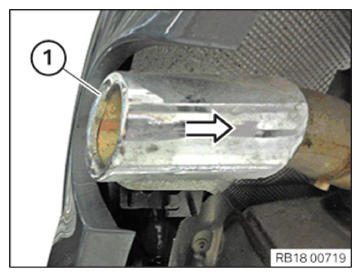

Replace the exhaust cover (1).
Parts : Exhaust cover
Install exhaust cover (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Screw on actuator for exhaust flap using screws (2) and tighten.

TIGHTENING TORQUES SPECIFICATION

Controller drive exhaust flap to exhaust system
M6x16	Tightening torque	8.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Hook retaining bracket (1).
