Replacing the rear silencer

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Shavings resulting from sawing or grinding components.
Injury hazard!

Conduct all work in appropriate personal protective equipment only.
Wear safety goggles and hand protection.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

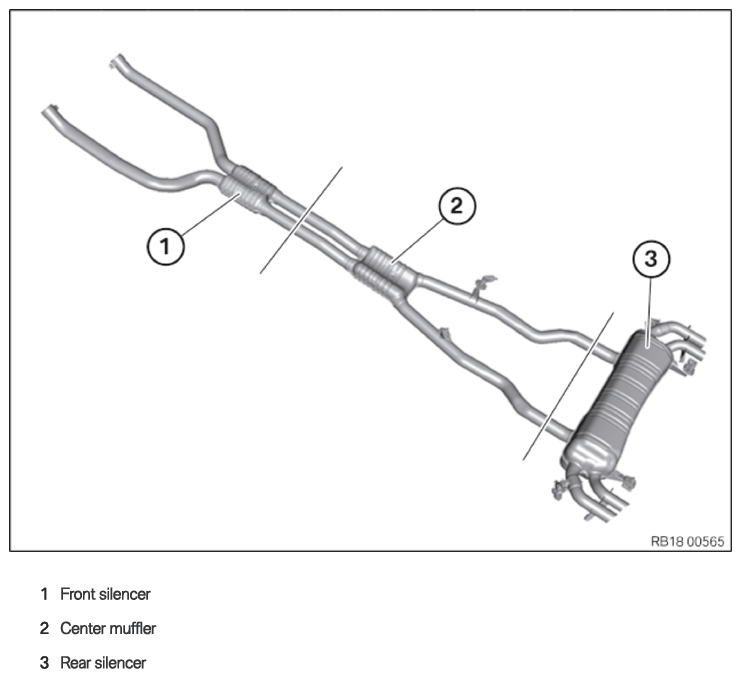

Exhaust system

Courtesy of BMW OF NORTH AMERICA, INC.

If the separation point is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new rear silencer.
Carry over separation point to faulty rear silencer and mark.
Secure rear silencer against falling off.
Cut through exhaust pipes at marked point with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and detach the connector (1) on the left and right.
Loosen nuts (2).
Lower the rear silencer with the assistance of another person and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

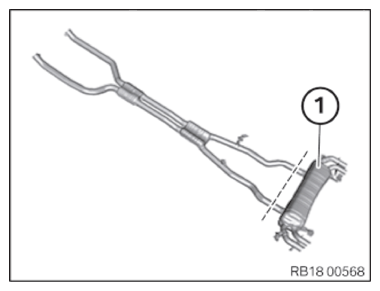

Adjust the new rear silencer (1) and attach it to the center silencer with the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.
Check rubber mount for damage. Replaced damaged rubber mounts.
Mount the rubber mount onto the new rear silencer.
Replace nuts (2).
Parts: Nuts
Hand-tighten nuts (2).
Connect the connector (1) on the left and right.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Align the rear silencer to the rear apron

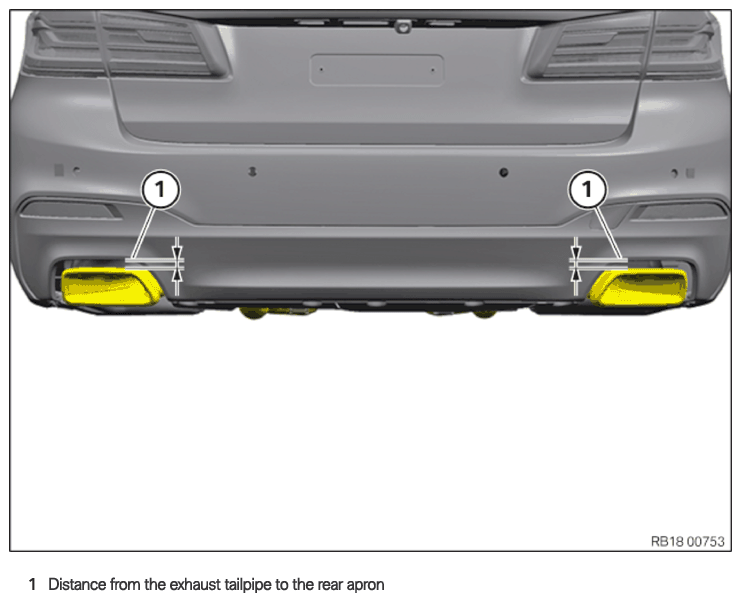

Installation position of the rear silencer on the rear apron

Courtesy of BMW OF NORTH AMERICA, INC.
Before aligning rear muffler to the rear apron, the front section of the exhaust system must be placed in a horizontal position.

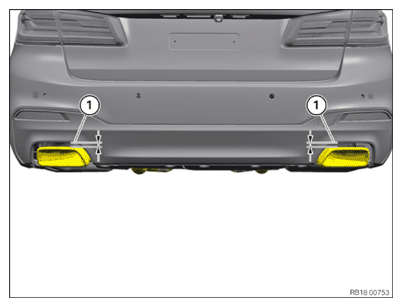

Set up the exhaust tailpipes so that the distance (1) of the left exhaust tailpipe to the rear apron is a maximum of 5 mm compared to the distance of the right exhaust tailpipe.

Courtesy of BMW OF NORTH AMERICA, INC.
Check rubber mount for damage. Replaced damaged rubber mounts.
Mount the rubber mount onto the new rear silencer.
Replace nuts (2).
Parts: Nuts

Tighten nuts (2).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Rear silencer to bumper bracket/body
Nut M8 Replace nut.	Tightening torque	19 Nm

Connect the connector (1) on the left and right.
The connectors (1) must engage audibly.

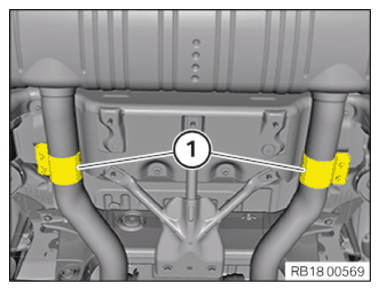

Center the clamps (1) and tighten down.

TIGHTENING TORQUES SPECIFICATION

Clamp with partial replacement of exhaust system
Clamp	Tightening torque	45 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

After the work on the exhaust system is completed, take a 5 to 10 minute test drive. After the test drive, check the exhaust tailpipes for symmetrical distance from the rear apron and if necessary, readjust them.

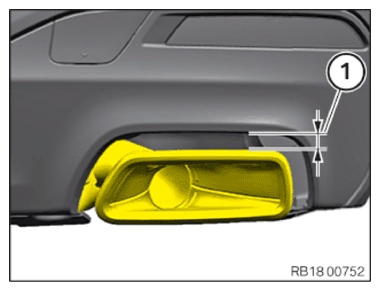

Then carry out a visual inspection for the symmetrical (above all horizontal) orientation of the exhaust system tail pipes (1).
