Installing front silencer

Replace the front silencer (1).
Parts: Front silencer
Guide in the front silencer (1) with the assistance of another person and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1 (Ribbon clamp)

Replace the (1) ribbon clamp.

Parts: Ribbon cable clamp Tighten the ribbon clamp (1).

TIGHTENING TORQUES SPECIFICATION

Exhaust system to catalytic converter
Ribbon clamp nut M8 Replace the ribbon clamp.	Tightening torque	26 Nm
Ribbon clamp nut M10 Replace the ribbon clamp.	Tightening torque	55 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Front pipe/front silencer/gasoline particulate filter to the transmission holder
M8 Replace nut.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2 (V-band clamp)
Replace V-band clamp.

Parts: V-band clamp

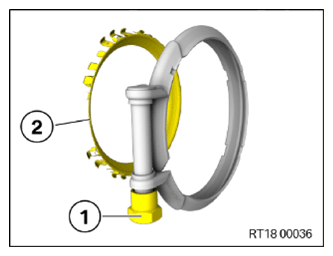

Unscrew the nut (1) and remove the sealing ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.

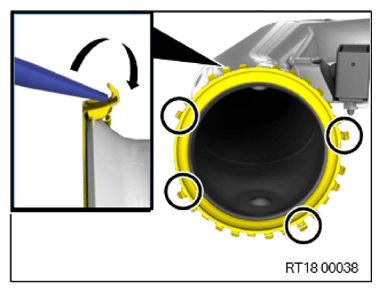

Bend all sheet metal tabs over with a suitable tool, except those in the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.
Mount the V-clip (1) on the sealing ring (2).
Make sure that the V-clip (1) is positioned correctly on the sealing ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that, after mounting, the V-ribbon clip is on the sheet metal tabs (marks).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the exhaust system (1) with the catalytic converter (2) (arrow) and position correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that V-clip (1) is fitted correctly.

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

V-ribbon clip to catalytic converter
V-ribbon clip Replace V-ribbon clip.	Tightening torque	25 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the front silencer (3) with a gripper clamp (2) to the new rear silencer (1).

Center the gripper clamp (2) and tighten the nuts (4).

TIGHTENING TORQUES SPECIFICATION

Clamp with partial replacement of exhaust system
Clamp	Tightening torque	45 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
