Installing the controller drive for the exhaust flap

NOTE: Description is for right component only. The procedure on the left side is identical.

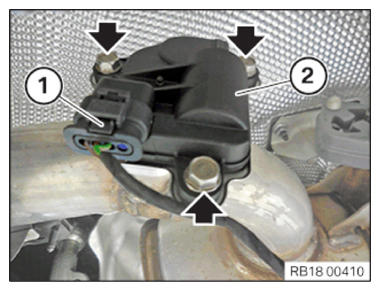

Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Controller drive exhaust flap to exhaust system
M6x16	Tightening torque	8.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1). The connector (1) must engage audibly.

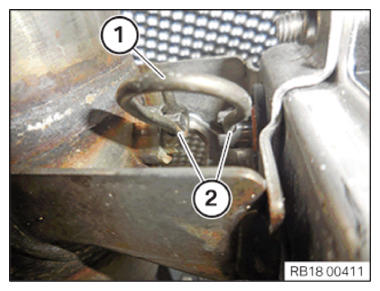

Make sure that the wire spring (1) is correctly installed in the guides.
