Installing the actuator for the exhaust flap
- Remove and install the controller drive for the exhaust flap.
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Controller drive exhaust flap to exhaust system | ||
| M6x16 | Tightening torque | 8.5 Nm |
- Attach the mounting bracket (1).
- Make sure that the mounting bracket (1) is correctly installed in the guides.

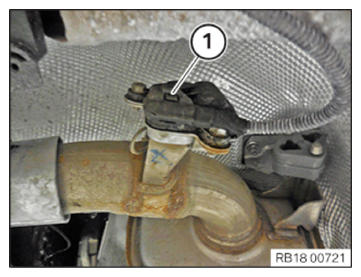

- Connect and lock the connector (1).
The connector (1) must engage audibly.
