Installing the actuator for the exhaust flap

Position the heat shield (2).

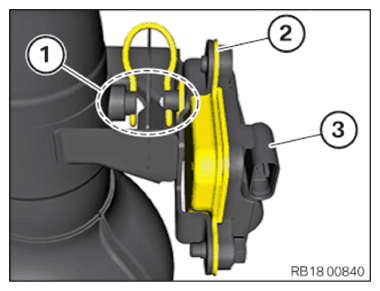

Position the actuator for the exhaust flap (3).
Make sure that the shaft of the actuator for the exhaust flap (3) and the shaft of the exhaust flap interlocks correctly in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

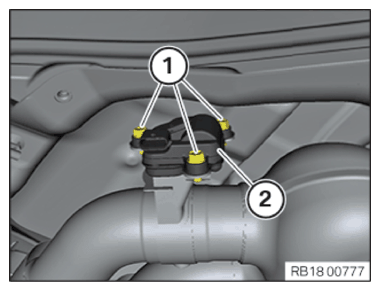

Position the actuator for the exhaust flap (2).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Actuator for the exhaust flap
M6x16	Tightening torque	8.5 Nm

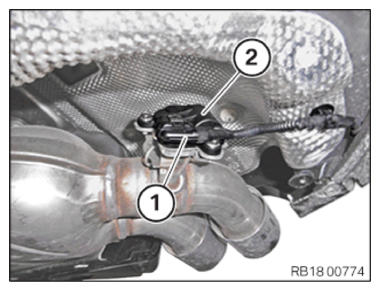

Connect the connector (1) with the exhaust flap (2) and lock it.
