Installing the actuator for the exhaust flap

NOTE: Description is for right component only. The procedure on the left side is identical.

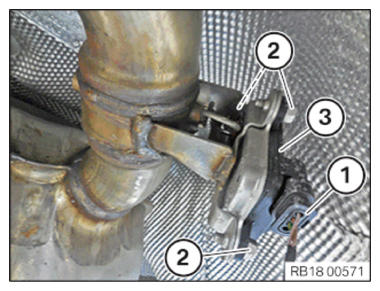

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Controller drive exhaust flap to exhaust system
M6x16	Tightening torque	8.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Pin up connector (1) and lock audibly.

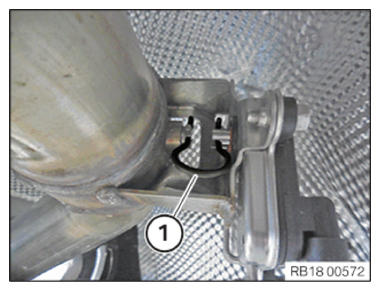

Ensure that the exhaust flap is correctly connected to the controller drive with the wire spring (1).

Courtesy of BMW OF NORTH AMERICA, INC.
